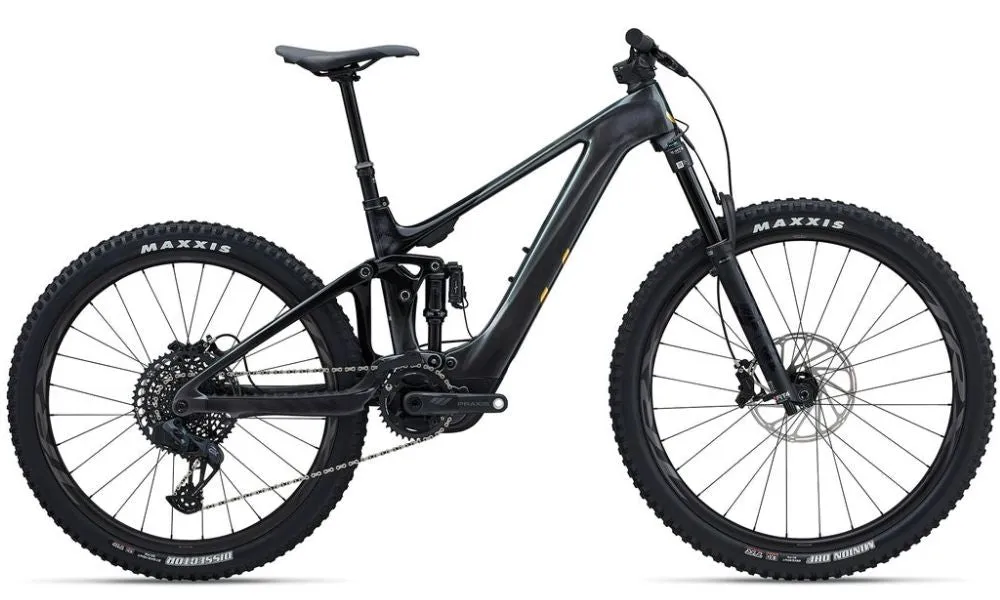

Liv 2023 Intrigue X Advanced E Elite 1
Supercharged Thrills
Next-level performance and unforgettable fun await you on this premium E-MTB.
The cutting-edge Intrigue X Advanced E Elite is remarkably light but super powerful.
Get ready to feel like a pro as you shred technical terrain with confidence, accelerate up climbs and, corner at top speed.
Lightweight and nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
Powerful and smooth
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.
Sleek design
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
Specifications
Liv 2023 Intrigue X Advanced E Elite 1
Frame
Colour: Air GlowFrame: Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system MX (front 29"", rear 27.5"")
Fork: Fox 36 Performance Elite Live Valve, 150mm travel, 44mm offset, Grip2 damper, Boost 110x15QR, electronic adaptive suspension, e-bike integrated, e-bike integrated
Shock: Fox Float X Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
Drivetrain
Drive Unit: Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technologyBattery: Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Crankset: Praxis Performance Carbon e-crank arms (XS/S:160, M/L:165) SRAM X-SYNC Eagle 36T chain ring
Pedals:
Chain: SRAM GX Eagle PowerLock
Bottom Bracket: NA
Rear Derailleur: SRAM GX Eagle PowerLock
Front Derailleur: MRP 1X HD2 custom co-molded chain guide
Derailleur Shifter: SRAM AXS Rocker Paddle, wireless electronic shifting
Freewheel/Cassette: SRAM XG-1275, 10-52T, 12-speed
Wheels
Tyres: [F]Maxxis Minion DHF 29X2.50"" Foldable, TLR, EXO [R] Maxxis Dissector 27.5x2.4"" Foldable, TLR, EXOWheels/Rims: TRX 2 Hookless Clincher, 29" [F] / 27.5" [R], 30mm inner width
Hubs: TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 30T) SRAM XD, 110 x 15 [F] / 148 x 12 [R] Thru-axle
Braking System
Brakes: SRAM Code R, hydraulic disc, 220mm[F] /200mm[R]Brake Levers: SRAM Code R
Other
Handlebar: Giant Contact SLR Trail, carbon, 760mm (XS-S), 800mm (M-L)Stem: Giant Contact SLR Trail, integrated, 40/45/50mm Reach, 7/9degree Sweep Adjust System
Saddle: Liv Sylvia E
Seat Post: Tranz-X Rad dropper, 30,9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm, L:140-170mm)
Control: RideControl Ergo3, grip integrated remote
Display: RideControl GO, frame integrated LED console Optional wireless ANT display
Charger: EnergyPak 4A smart charger, 60% in 1:45
